Product Name: Premium Hanging Micro-Sprinkler | Precision Water-Saving Solution for Smart Agriculture
Product Overview Engineered specifically for modern smart agriculture and greenhouse environments, our Hanging Micro-Sprinkler is the core component of precision irrigation systems. Featuring an advanced flow channel design and anti-drip technology, it delivers uniform, fine misting even at low pressures. This sprinkler not only maximizes water and energy efficiency but also precisely controls root-zone moisture, making it the ideal choice for boosting the yield and quality of high-value crops.
Key Features & Benefits
- Superior Atomization & Uniformity: The unique deflector flow path ensures consistent droplet size, preventing seedling damage from heavy water drops. Achieves a Coefficient of Uniformity (CU) of over 90%.
- Smart Anti-Drip Technology: Equipped with a high-quality silicone check valve that instantly seals when the water supply stops. This prevents residual dripping, avoiding localized over-watering and reducing the risk of fungal diseases.
- Low-Pressure & Energy Efficient: Operates efficiently within a wide pressure range (0.15-0.35 MPa), maintaining excellent spray patterns at low pressure. Saves 50%-70% more water compared to traditional flood irrigation.
- UV-Resistant & Durable Construction: Manufactured from engineering-grade POM/ABS plastic with UV stabilizers. Designed to withstand harsh greenhouse conditions without becoming brittle or deforming over time.
- Modular & Easy Maintenance: Features a quick-disconnect design for effortless cleaning and unclogging. Highly resistant to blockages, significantly reducing labor costs and perfectly compatible with automated smart irrigation controllers.
Technical Specifications
- Model: IFS-200
- Flow Rate: 40-80 L/H
- Operating Pressure: 0.15 – 0.35 MPa
- Spray Diameter: 1.5 – 3.0 meters
- Connection Type: 1/2″ BSP Male Thread / Quick Connect Barb
- Material: UV-resistant Engineering Plastic + Silicone Anti-Drip Valve + Stainless Steel Weight
Applications
- Modern Smart Greenhouses & Polytunnels
- Seedling Nurseries & Floriculture
- Orchards & High-Value Cash Crops
- Mushroom Cultivation & Agricultural Research Facilities
Frequently Asked Questions (FAQ)
Q1: How do I solve the “dry spot directly under the sprinkler” (lamp-post effect) issue?
A: Traditional single-channel sprinklers often suffer from this. We highly recommend using our Dual-Channel Micro-Sprinklers. Featuring both a large and small flow channel, this design ensures uniform water distribution directly beneath the sprinkler, completely eliminating blind spots.
Q2: How can I prevent leakage at the pipe connection during installation?
A: When punching holes in the PE pipe, always hold the pipe firmly and punch at a strict 90-degree angle without wobbling. Oversized holes are the main cause of leaks. Also, opt for our 2026 upgraded fittings with built-in silicone sealing rings, which effectively prevent micro-leaks caused by thermal expansion and contraction.
Q3: What should I do if the misting becomes uneven or stops after a while?
A: This is usually caused by mineral buildup or debris. We recommend installing a 120-mesh filter at the water source and flushing the pipe ends every 1-2 months. For mildly clogged sprinklers, simply disassemble and clean with a soft brush or soak in a diluted acid solution to dissolve scale.

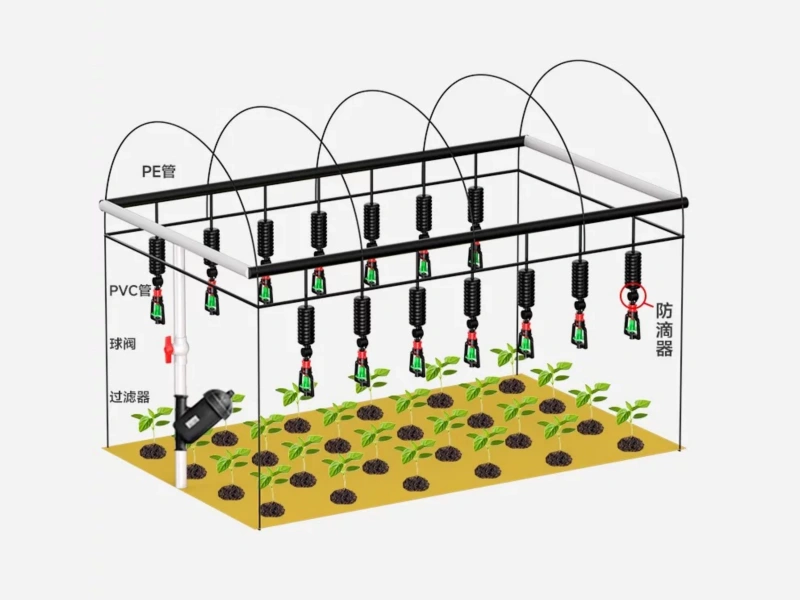

Q4: What is crucial when installing hanging micro-sprinklers upside down?
A: When using an inverted (hanging) setup, installing an Anti-Drain (AD) Valve is essential. It automatically closes when the system shuts off, preventing residual water from dripping onto seedlings and causing root rot or fungal diseases.
Why Choose Us?
As a professional agricultural irrigation equipment manufacturer, we provide more than just premium hardware—we deliver end-to-end solutions from system design to after-sales support. Our products are [CE/RoHS/ISO9001] certified and exported to over 50 countries worldwide, making us your trusted partner in smart agriculture.
